Dynamic Calibrator

Dynamic calibrator

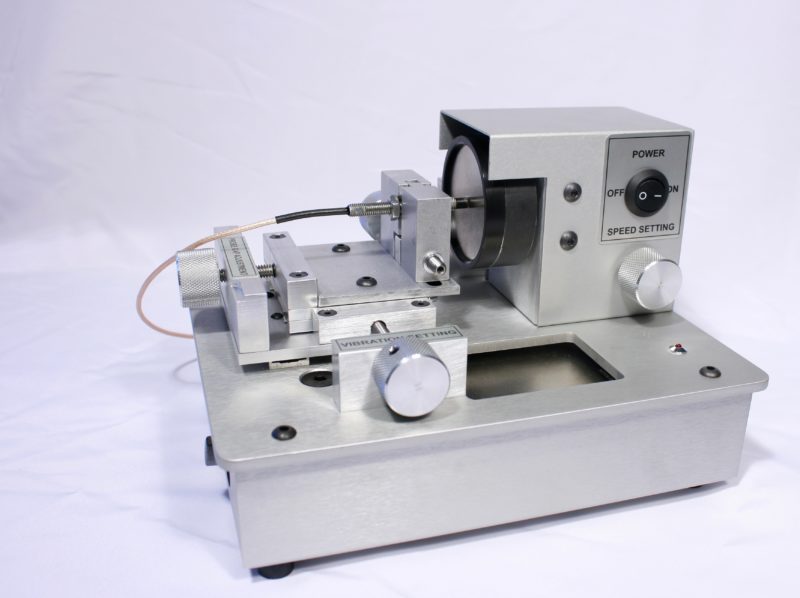

Adjustable Vibration Simulator for 6200-PSC Dynamic Calibrator

High Precision Model 6200-PSC Dynamic Calibrator

Watch video below to see 7 unique features that are only available on the Gilchrist-Pearson Technology Dynamic Calibrator.

7 Unique Features: Battery Operation, Tachometer Included, Magnetic Mounting, Adjustable Probe Grippers, 1 to 40 Mill Vibration Range, Adjustable X Bearings, Second Key Phasor Mounting

No collets

No Collets Required

The universal probe jaws grips all Prox. Probes from .197″ to .750″ diameters (5 mm to 19.05 mm)

Proximity probe

Proximity Probe

Proximity probe held in static probe tester magnetically attached to steel pipe.

100_0961

Stand-Alone Tachometer

Setting the correct speed takes just seconds using the stand-alone tachometer included with the Dynamic Unit.

High Precision Model 6200-PSC Dynamic Calibrator

Calibrate eddy current, proximity and non-contact probe systems with greater accuracy in less time and with less hassle!

Advanced Features of the Model 6200PSC -DI Eddy Probe Test System

Target Material

Target material is 1.5″ to handle up to 13MM proximity probes.

Dual Probe Grippers

Probe grippers on both the Dynamic and Static calibrators so that they can be used at the same time by different persons

No Collets Required

The universal probe jaws grips all Prox. Probes from .197″ to .750″ diameters (5 mm to 19.05 mm).

No Line Power Needed

Operates from internal battery up to 10+ Hours before needing recharging.

Variable Speed with Stand-Alone Tachometer

Lets you match the precise Proximity Probe Test speed to actual operations up to 6,500 RPM. The Tachometer let’s you set the correct speed easily and quickly without needing to hook up a key-phase probe.

Magnetically Mountable

Both the Static and Dynamic Proximity Probe Test units will stick on any steel surface, either vertically or horizontally. Both the Dynamic and Static units come with a built-in magnetic holder that is turned on/off by just the turn of a knob.

Light Weight

The entire Dynamic Proximity Probe Test System weighs just 13 lbs.

  • Pelican Carring Case Included
  • Battery Charger Included
  • No Tools Required

Warranty

All of the components manufactured by Gilchrist-Pearson are warranted for a period of 5 years against all failures other than those caused by end user. Items purchased from outside suppliers, such as the Digital Micrometer is only covered by the manufacturer for 90 days. The Digital Micrometer is a HIGH PRECISION measuring device with resolution capability down to 1/20 of 1 thousand of an inch. Be sure to look at above video to see how to best protect the Static Calibrator against shipping and handling damage.

6200PSC-DI including both Dynamic and Static Calibrators
Price $3,740
6200PSC including only the Dynamic Calibrator
Price $2,770
6200PSC-AVS includes both Dynamic and Static Calibrators PLUS Adjustable Vibration Simulater Wheel along with accessories.
Price $4,035
Contact Us

For a free formal quotation call (281) 923-9055.
Distributor inquires welcomed throughout the world.

Specifications

Complete System Includes

  • Dynamic Test Unit
  • Static Unit with NIST Certified Digital Micrometer. INCH & METRIC Display
  • Stand-Alone Tachometer
  • Built in Magnetic mounts on both Dynamic and Static units.
  • Pelican Carrying Case
  • Battery Charger
  • Full 5 year warranty

Available Options

Adjustable Vibration Simulator Wheel + Accessories – $295.00


Second Probe holder for testing the output of two probes at the same time – $65.00


High Precision Model 6200-PSC Dynamic Calibrator

100_0830

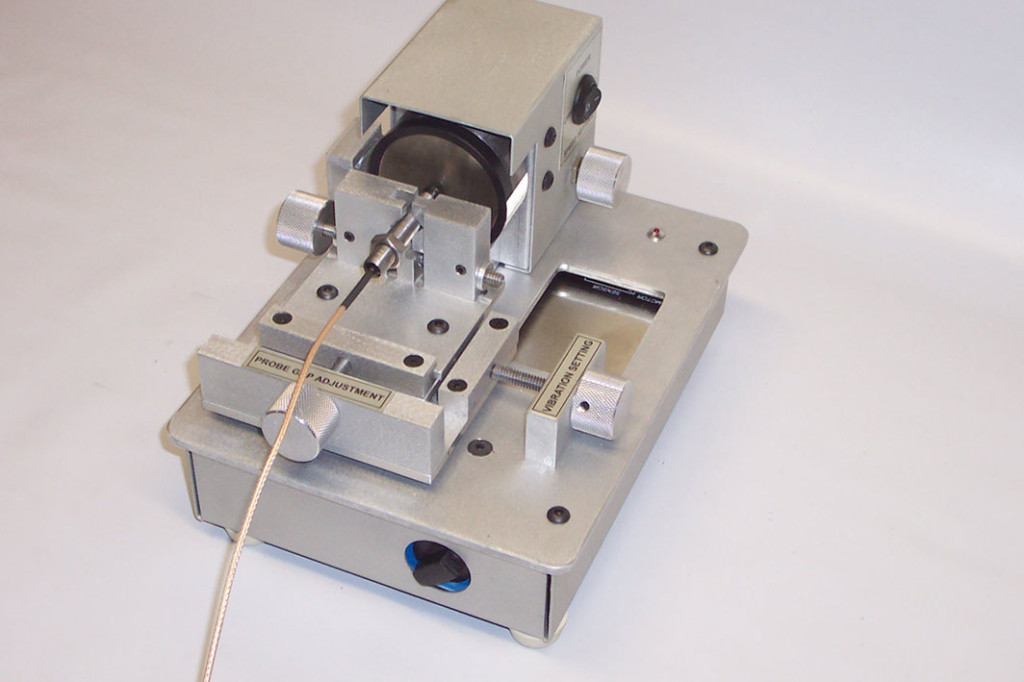

When the Eddy Probe is held in our grippers, the probe is automatically centered on the Target Material in both Vertical & Horizontal direction.

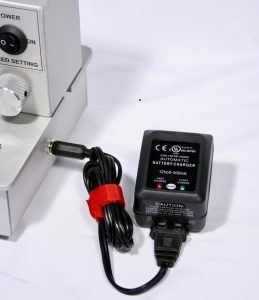

Battery Operation with Charger

100_0774

Operates for 10+ hours before needing re-charging. A charger is included that will work off of either a 110 or a 220 voltage source.

Charger automatically shuts down when battery is fully charged so you can leave it plugged in over-night.

The only way in which you can damage the battery is discharge it completely and then leave it in said condition for many months or charge while operating unit.

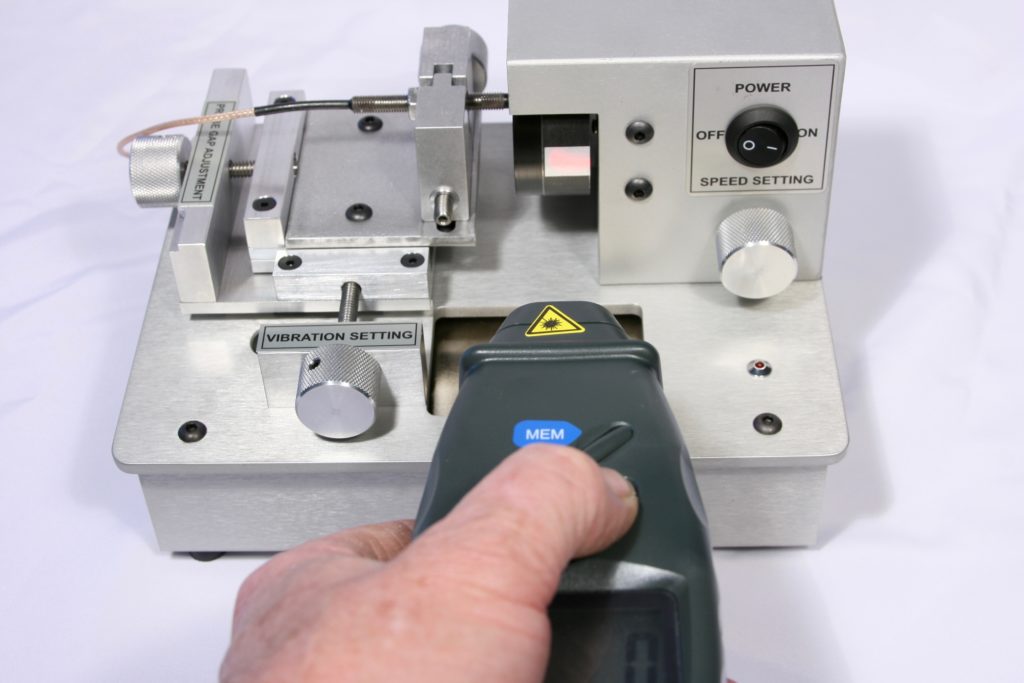

Tachometer Included

100_0961

The stand-alone battery powered Tachometer lets you easily and quickly set the rotational speed of the target material from 50 rpm up to 6,500 rpm.

This lets you test the Probe at the same speed as in actual use.

Rotate the knob at the right of the Tachometer to adjust speed. Clockwise to increase speed and counter-clockwise to reduce speed.

You no longer need to use a Key-Phasor probe combined with a voltage meter to calculate the rotational speed.

Magnetic Mounting

100_0832

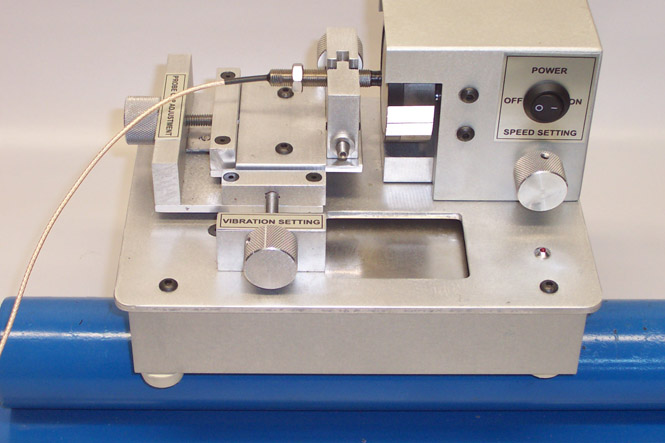

Magnetic mounting with 130 lbs holding force lets you place the Dynamic Calibrator on any steel object conveniently located near the work place. The above photo shows how the Dynamic Calibrator, weighing 13 lbs. can even be clamped on a round pipe.

You no longer have to kneel down and work on the floor.

Adjustable Probe Grippers

100_0831

Adjustable probe grippers will grip any probe diameter from 5 mm to 19 mm (.197” to .750”) while also centering the probe relative to the Target Material.

At Gilchrist-Pearson Technology we believe that:

IT IS BETTER TO HAVE CAPACITY THAT YOU MAY NOT NEED INSTEAD OF NEEDING CAPACITY YOU DO NOT HAVE

Second Probe Holder

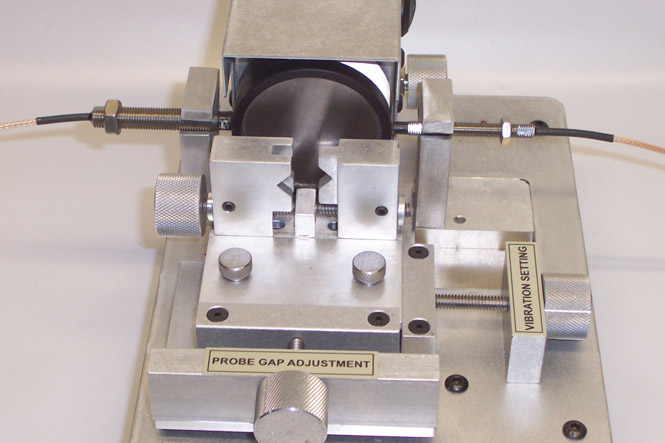

100_0945

Second key phasor lets you compare two separate probes at the same time. This probe holder is held in place by a magnet and both probes are aligned on a common center line. This item is offered as an option costing $65.00

The probe holder is small enough to fit within the Pelican carrying case so you will always have it when needed.

Over time we have learned that rough handling plus vibration encountered during shipping the calibrator from one location to another, will cause bearing and fasteners to loosen over time. For that reason we have incorporated an ADJUSTABLE bearing on one side of our Probe Holder module.

Thereby, as the bearing alignment loosens over time & wear, the operator can adjust out this bearing play, by inserting a Phillips head screw driver into the “U” shaped slot on the front side of the base frame, and then push inwards until it aligns with the Phillips Head screw located about an inch from the front wall. Then, turn the screw driver in the clock wise direction until the screw is snug, and all bearing play has been removed. This is now a standard feature on all of our Dynamic Calibrators

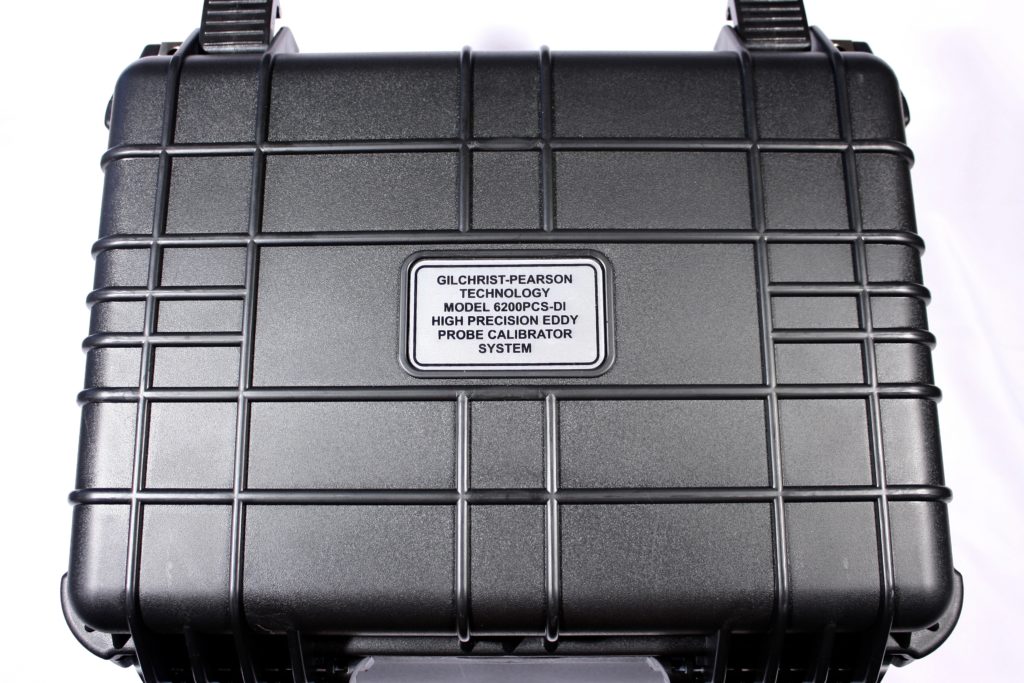

Pelican Carrying Case

100_0889

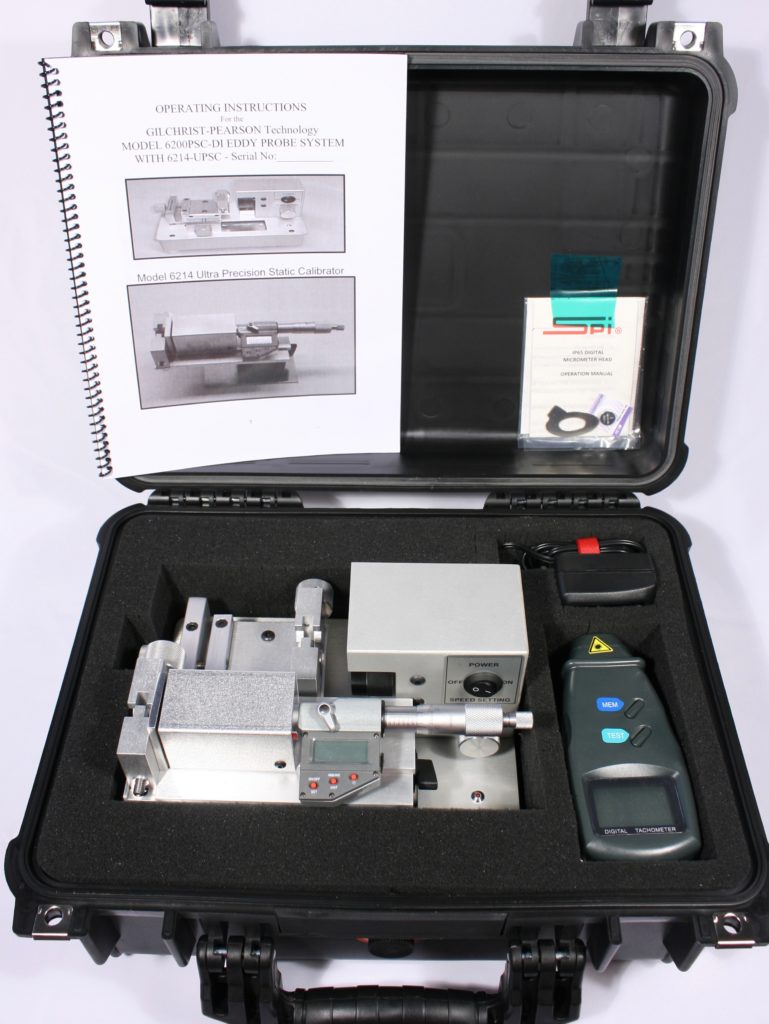

Pelican carrying case is included. This holds both the Dynamic and Static Calibrators, Battery Charger and Operating Instructions. Also offers great protection from handling damage during shipping or storage.

At Gilchrist-Pearson Technology we are always striving to make our equipment do a better job for our customers. Therefore we welcome all suggestions from our customers as to how we can make the Dynamic and Static Calibrators work better for the users.

Warranty

All of the components manufactured by Gilchrist-Pearson are warranted for a period of 5 years against all failures other than those caused by end user. Items purchased from outside suppliers, such as the Digital Micrometer is only covered by the manufacturer for 90 days. The Digital Micrometer is a HIGH PRECISION measuring device with resolution capability down to 1/20 of 1 thousand of an inch. Be sure to look at above video to see how to best protect the Static Calibrator against shipping and handling damage.
